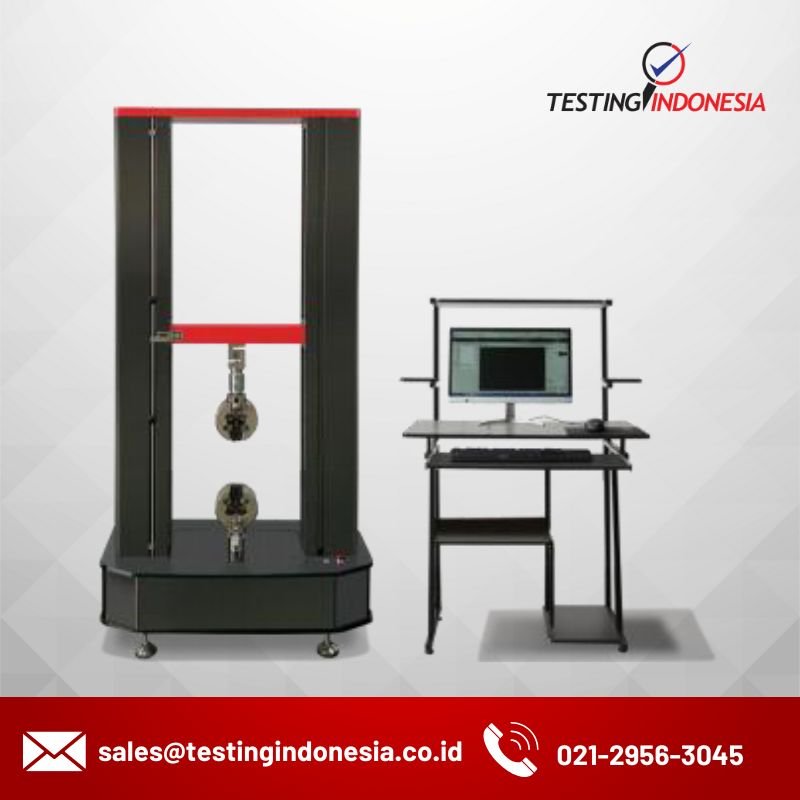

Electronic Universal Material Testing Machine WDW Series

Description

Electronic Universal Material Testing Machine WDW Series ini sangat tepat untuk menguji dan menganalisis sifat mekanis berbagai logam, non logam, dan material komposit, serta dapat memperoleh data uji seperti nilai gaya uji maksimum, nilai gaya patah, kekuatan luluh, kekuatan luluh atas dan bawah, kekuatan tarik, kekuatan tekan, perpanjangan putus, modulus elastisitas tarik, dan modulus elastisitas tekuk dari material uji.

Specification

Specification Model WDW- 10 WDW-20
Control method Microcomputer computer control
Maximum test force (KN) 10 20
Accuracy grade Level 1 (can be customized to 0.5 on request)
Test force measurement range 1% to 100% FS throughout without graduation
Relative error of test force value ±1% or less
Test force resolution 1/±300000 of the maximum test force with constant resolution throughout
Deformation measurement range (FS) 0.2%100%
Relative error of deformation value Within ±0.5% of indicated value
Deformation resolution 1/±300000 of the maximum deformation
Relative Error of Displacement Value Within ±0.5% of indicated value
Displacement resolution (µm) 0,025
Force control rate adjustment range (FS/S) 0.015%
Relative error of force control rate Within ±1% of the set value
Deformation rate adjustment range (FS/S) 0.025%
Relative error of deformation control rate Within ±1% of the set value
Crossbar speed adjustment range (mm/min) 0.01500
Constant force, constant deformation, constant displacement control range (FS) 1%100%
Constant force, constant deformation, constant displacement control accuracy Within ±1% of the set value when the set value is <10%FS; within ±0.1% of the set value when the set value is ≥10%FS
Effective stretching space (without clamps) (mm) 800
Effective test width mm 400
Power supply power kW 04
Supply Voltage AC220V±10% 50Hz
Dimension (mm) 800×450×1600
Weight (kg) 190

Features

1. Safety position and experimental position height arbitrary lock. 2. Automatic protection when exceeding the maximum load, software limit and electronic limit double protection.
