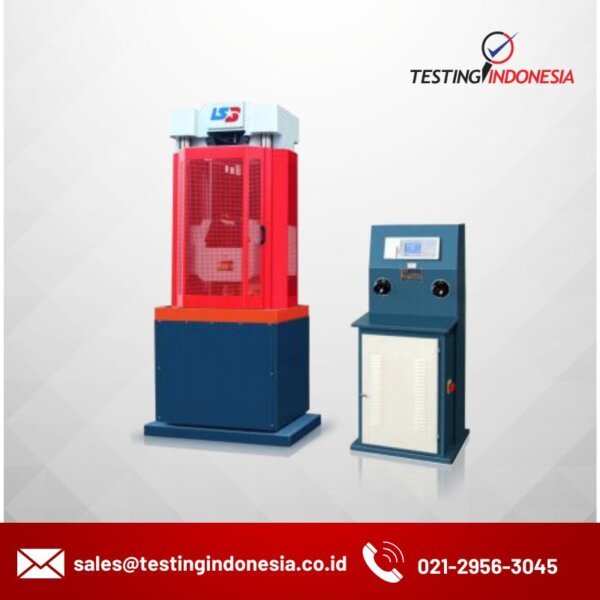

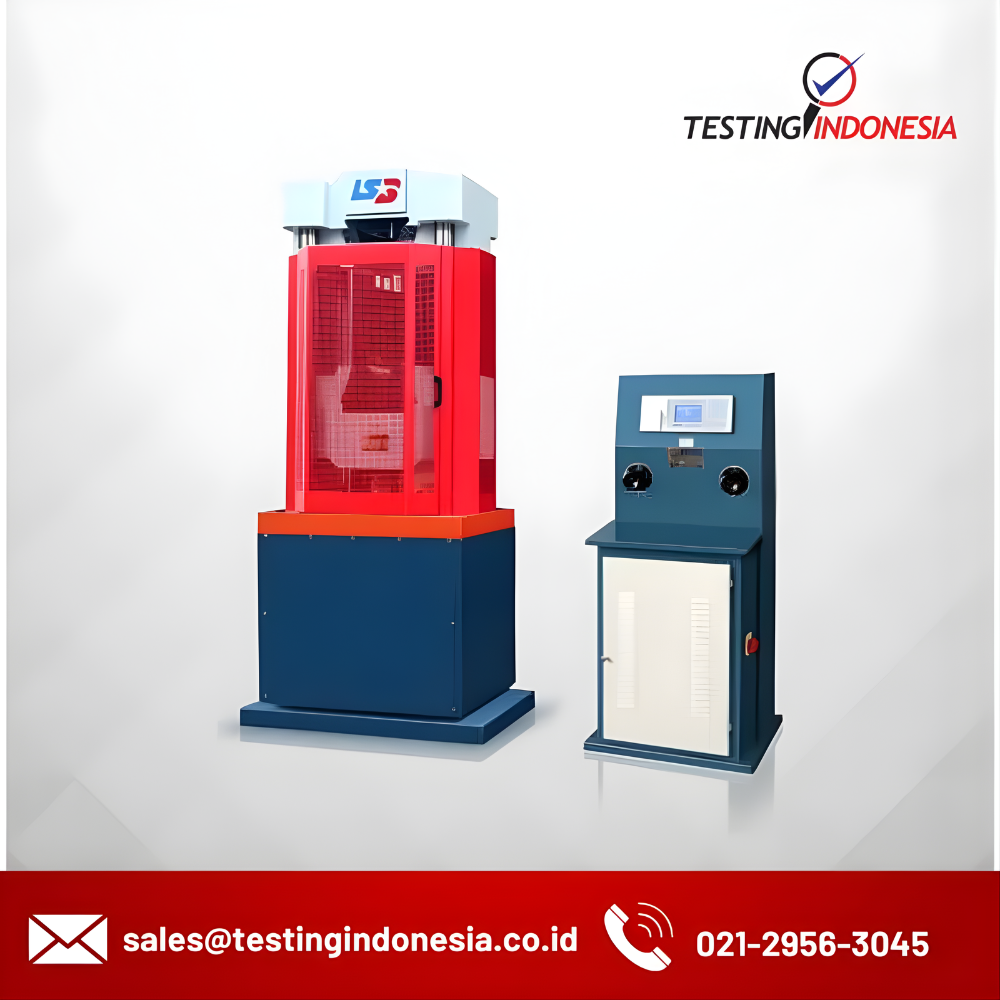

WE Series Digital Display Universal Material Testing Machine

WE Series Digital Display Universal Material Testing Machine

Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , ,

Description

The testing machine is also known as tensile machine, is powered by hydraulic pressure, mainly suitable for doing metal material tensile, compression and other tests, equipped with appropriate fixtures, can also be used to conduct non-metallic materials tensile, compression, bending and shear test to test the mechanical properties of materials, in the materials industry, metallurgy, non-ferrous metallurgy, building materials, machinery industry, transportation, etc. have a wide range of applications.

Spesification

Model SpecificationsWE- 100BWE-300BWE-600BWE- 1000B
Maximum test force(KN)1003006001000
Range and measurement range (KN)10～10030～30060～600100～1000
Relative error of value±1%±1%±1%±1%
Stretching space (mm)480480690690
Compressed Space (mm)480480620620
Flat specimen clamping thickness(mm)0～150～150～150～40
Round specimen clamping diameter(mm)10～2010～20、20～3213～26、26～4014～32、30～50
Working piston stroke(mm)120120170170
Upper and lower platen size(mm)Φ176×Φ176Φ180×Φ180Φ220×Φ230Φ220×Φ230
Distance between two pillars in tension and compression420420510510
Maximum rise speed of table plate(mm/min)100100100100
Maximum lifting speed of moving beam(mm/min)240240240240
Total motor power(Kw)13131818
Main external dimensions(mm)730×550×1660730×600×1840820×600×2000940×650×2080
Dimension of force measuring cabinet(mm)530×500×1270530×500×1270530×500×1270530×500×1270
Overall weight(kg)1600180021002400
