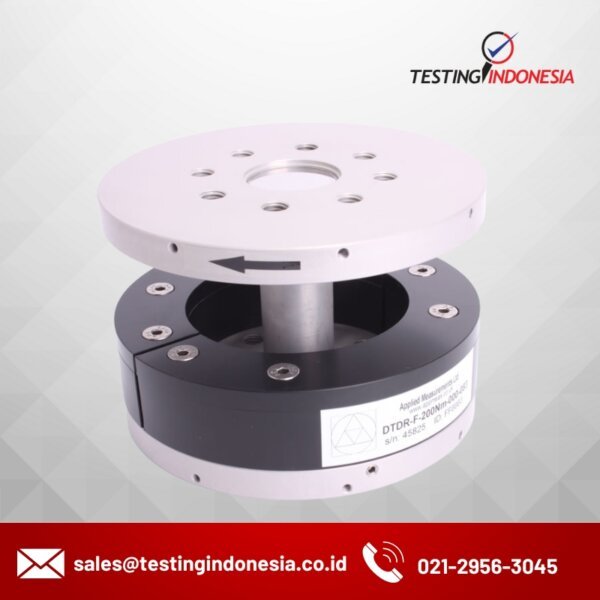

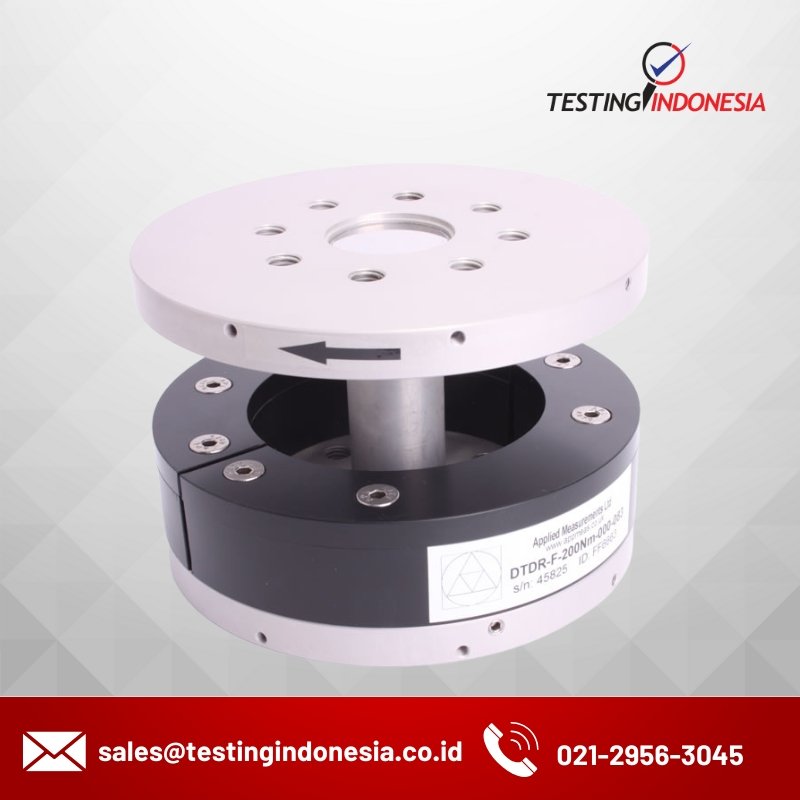

Wireless Rotary Torque Sensor



Category: Tags: , ,

Description

The DRWPL waterproof torque sensor series manufactured by ETH Messtechnik in Germany are rated to IP67 and have been specially designed for operation in harsh environments. They will operate happily where dust, water and high humidity are present constantly, and will even withstand short-term immersion to less than 1 metre depth for 30 minutes maximum.

A ±10Vdc analogue output is provided from DRWPL’s internal signal conditioner which offers a 200Hz frequency response. Pulsed speed and angle output options are also available.

Customised couplings can be offered with the DRWPL waterproof torque sensor to ensure straightforward integration into your application along with optimum performance.

Product Dimensions

DTDR-F Wireless Torque Sensor Outline Drawing
Capacity (Nm)
A (mm)
ØB (mm)
ØC H7 (mm)
D (mm)
E (mm)
F (mm)
ØG (mm)
0-10100150381327210.1
0-25100150381327210.1
0-50
100
150
38
13
2
72
10.1
0-100
100
150
38
13
2
72
10.1
0-200
100
150
38
13
2
72
10.1
0-500
100
150
38
13
2
72
10.1
0-1000
110
150
38
19
2
72
10.1
0-2000
110
160
38
19
2
72
10.1
0-3000
130
203
50
30
3
177
16.2
0-5000
140
203
50
35
3
177
16.2
0-10,000
150
203
50
38
3
177
16.2
0-20,000
155
240
60
42
3
200
20.2
0-30,000
180
280
60
50
4
235
24.2
0-50,000
180
280
60
50
4
235
24.2

Ordering Codes & Options

Core ProductCapacity (inc Engineering Units)Cable Length (m)Specials CodeResult
DTDR-F10Nm000000DTDR-F-10Nm-000-000
DTDR-F25Nm000000DTDR-F-25Nm-000-000
DTDR-F50Nm000000DTDR-F-50Nm-000-000
DTDR-F100Nm000000DTDR-F-100Nm-000-000
DTDR-F200Nm000000DTDR-F-200Nm-000-000
DTDR-F500Nm000000DTDR-F-500Nm-000-000
DTDR-F1000Nm000000DTDR-F-1000Nm-000-000
DTDR-F2000Nm000000DTDR-F-2000Nm-000-000
DTDR-F3000Nm000000DTDR-F-3000Nm-000-000
DTDR-F5000Nm000000DTDR-F-5000Nm-000-000
DTDR-F10,000Nm000000DTDR-F-10000Nm-000-000
DTDR-F20,000Nm000000DTDR-F-20000Nm-000-000
DTDR-F30,000Nm000000DTDR-F-30000Nm-000-000
DTDR-F50,000Nm000000DTDR-F-50000Nm-000-000

Features

  • Advanced Cable-Free Wireless Monitoring up to 800m
  • Ideal for PC Logging, Analysing and Reporting
  • Fast and Simple Installation with Customised Flange Designs

Spesification

Technical Specifications

Rated Capacity (RC)Nm0-10, 0-25, 0-50, 0-100, 0-200, 0-500, 0-1000, 0-2000, 0-3000, 0-5000, 0-10k, 0-20k, 0-30k, 0-50k (Higher and lower capacities also available)
Operating ModesClockwise (CW)/Counter-Clockwise (CCW) / Clockwise (CW) & Counter-Clockwise (CCW)
Output2.4GHz Wireless Telemetry: Compatible with all T24 Modules*
Output Bandwidthup to 200Hz (2kHz optional)
Non-Linearity±%/Full Scale Output<0.1 typical
Hysteresis±%/Full Scale Output<0.1
Repeatability±%/Full Scale Output<0.05
Temperature Effect on Zero±Reading/ ˚C<0.010
Temperature Effect on Output±/Reading/ ˚C<0.020
Operating Temperature Range˚C0 to +50 (temperature range when charging +15 to +45)
Compensated Temperature Range˚C+10 to +50
Safe Overload% of Rated Capacity150
Ultimate Overload% of Rated Capacity>200
IP Rating (Environmental Protection)IP65
WeightSpeak to sales
Fatigue RatingFully Reversed Cycles20 million (standard version) / 200 million (fatigue-rated version)
Power SupplyIntegrated 3.6V Lithium-Ion Rechargeable Battery
Battery Life Guidetx rate (Hz) / hours (approx)3/700, 10/200, 20/100, 50/35, 200/30 (also applies to 2kHz option)
Rangemetres120 (in ideal conditions)
Maximum Rotational Speedrpm6500
BalancingGrade G6,3 (per ISO 21940-11 standards)
Construction MaterialsAluminium Alloy (>500Nm) / Stainless Steel (1000Nm>) & Acetal
*2kHz model is only compatible with T24-AO1, T24-AO1I, T24-BSi, T24-BSu Modules and the T24 Toolkit Software.
