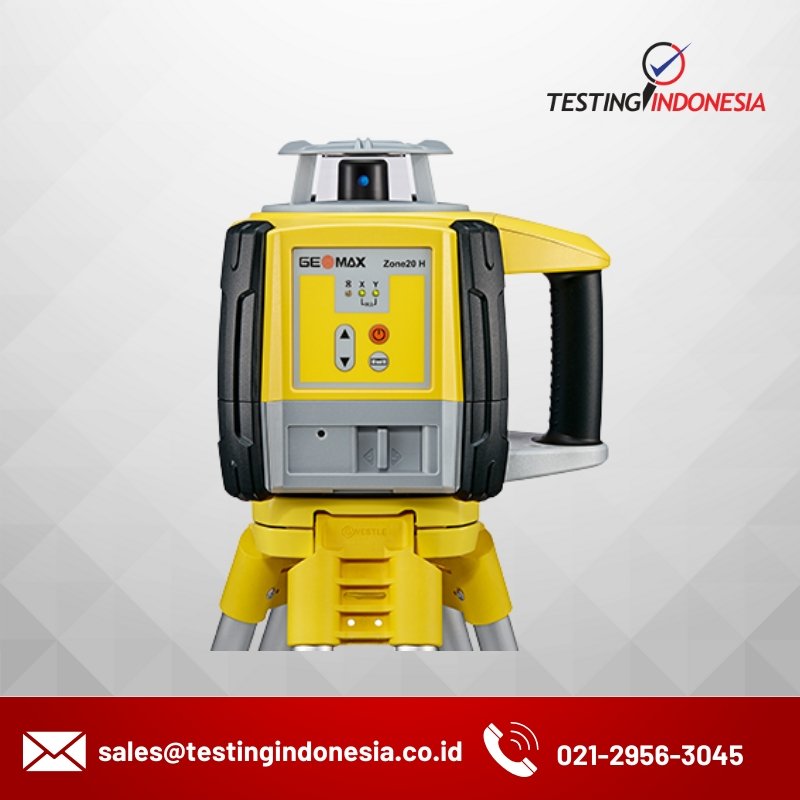

Zone20 H

Name: Testingindonesia
Rating: 5

Zone20 H is an economic and rugged entry level rotating laser. With a solid built housing and a straightforward interface, this laser offers all functions needed for regular and flexible use. Zone20 H is a horizontal laser that allows grade setting manually in two axes. It is easy to use and highly reliable in any element.

Category: Laser Rotators Tag: Zone20 H

Description

The powerful GeoMax Zone laser rotators portfolio offers the right construction tools for all trades and applications. Regardless if you’re just starting in the industry dealing with the fundamentals or you’re a seasoned professional handling complicated applications, GeoMax laser rotators are ready to work when you do.

Choose the perfect laser for your levelling, aligning or grading application from one of the best laser rotator portfolios in the market.

Solid-built and dependable in any element, these lasers ensure long-lasting operations thanks to multiple charging options and offer interchangeable accessories.

Zone20 H is an economic and firm entry level laser rotator. With a solid-built housing and a straightforward interface, this laser offers all functions needed for regular and flexible use. Zone20 H is an automatic horizontal laser that allows grade setting manually in two axes. It is easy to use and highly reliable in any element.

Tough and simple to use

The Zone20 H complies with the IP67 class of water and dust protection due to its solid-built housing as well as the glass cage. The rubber molded handles and bumpers provide great protection and easy grip. With its unique Li-Ion battery concept, the laser has 300 per cent greater lifetime than with NiMh batteries. It is fully charged in five hours only, which keeps the laser’s downtime to a minimum. With only four buttons, as well as an informative LED-indication on the laser, the device is very simple and easy to use for everybody. Information regarding battery and tool status can be quickly obtained.

Reliable operation

The Zone20 H is the ideal product for outside applications, such as concrete as well as formwork. As contractors need to constantly check the height of the concrete to ensure optimum levelling, Zone20 H solves this by allowing reliable operation. Thanks to the possibility to enter grades manually, contractors with occasional need for simple slopes like driveways and landscaping will get the most out of the Zone20 H.

Spesification

	Zone20 H	Zone20 HV	Zone40 T
Description	Self-leveling horizontal manual slope in dual axes	Self-leveling horizontal, vertical, 90° manual slope in dual axes	Self-leveling, horizontal one-button laser
Operating Range	900 m / 3000 ft (diameter)	900 m / 3000 ft	900 m / 3000 ft
Accuracy	± 2.2 mm at 30 m (± 3/32” at 100 ft)	± 2.2 mm at 30 m (± 3/32” at 100 ft)	± 1.5 mm at 30 m (±1/16” at 100 ft)
Self-leveling range	± 6°	± 6°	± 5°
Grade range	-	-	-
Rotation Speed	600 rpm	120, 300, 600 rpm	600 rpm
Laser diode type/class	635 nm (visible) / class 1	635 nm (visible) / class 2	635 nm (visible) / class 1
Batteries type	4 D-cell alkaline / Li-Ion 4	4 D-cell alkaline / Li-Ion	4 D-cell alkaline / Li-Ion
Battery life	> 60h (alk) / > 40h (Li-Ion)	> 60h (alk) / > 40h (Li-Ion)	> 60h (alk) / > 40h (Li-Ion)
> 60h (alk) / > 40h (Li-Ion)	-10°C to 50°C 14°F to 122°F	-10°C to 50°C 14°F to 122°F	-10°C to 50°C 14°F to 122°F
Storage Temp.	-30°C to 70°C -22°F to 158°F	-30°C to 70°C -22°F to 158°F	-30°C to 70°C -22°F to 158°F
Protection	IP67	IP67	IP67

Laser Receivers and Remotes

	ZRB90 Basic	ZRP105 Pro	ZRD105 Digital	ZRD105B
Working diameter	600 m (6000 ft)	900 m (3000 ft)	900 m (3000 ft)	900 m (3000 ft)
Extended detection window	80 mm / 3.1 in	105 mm / 4 in	105 mm / 4 in	105 mm / 4 in
Numeric readout height	-	-	90 mm / 3.5 in	90 mm / 3.5 in
Beam catching	-	-	-	✓
Beam lock	-	-	-	✓

ZRB90 Basic

The new and robust receiver, that comes with a specific bracket, has a long detection window and enables detecting at a length of 8cm. The accuracy read out of 1mm/2mm allows an easy finding of the laser beam. The ZRB90 Basic Receiver works up to 300m and runs from the power supply of 2 x AA alkaline batteries. It complies with the high standard of IP66 and therefore allows working even in tough construction environments. The ZRB90 Basic works with all Zone Lasers as well as the ZEL400.

ZRP105 Pro

Top performance. Professional format with a detailed, multi-channel analog, dual display, supported by adjustable LED and audio signals. Build-in flash suppression. This receiver can be used for all Zone Lasers.

ZRD105 Digital

Best digital display technology, packed into a professional and robust housing. Fully featured for a top performance with precise results. Dual display, supported by adjustable LED and audio signals. Build-in flash suppression. This receiver can be used for all Zone Lasers.

ZRD105B

Combines the advantages of the ZRD105B with great new features that are available with the Zone 60DG. Beam Catching – find and align the beam by one key press. Beam Lock allows monitoring the beam. The ZRD105B can be used for the Zone60 DG.

Download Catalogue
