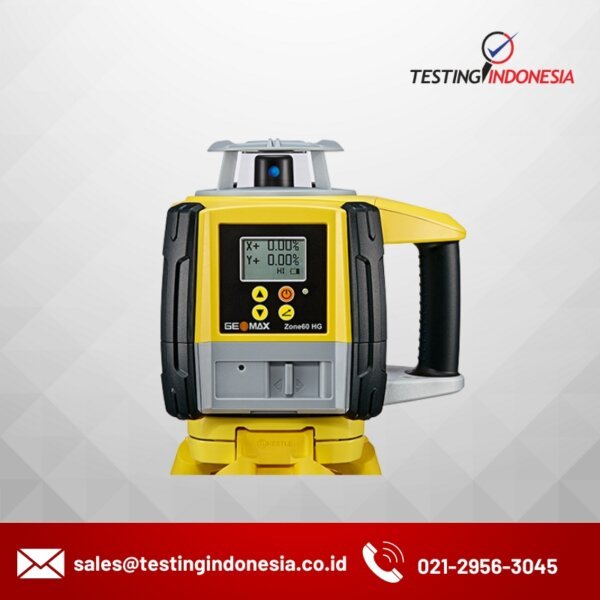

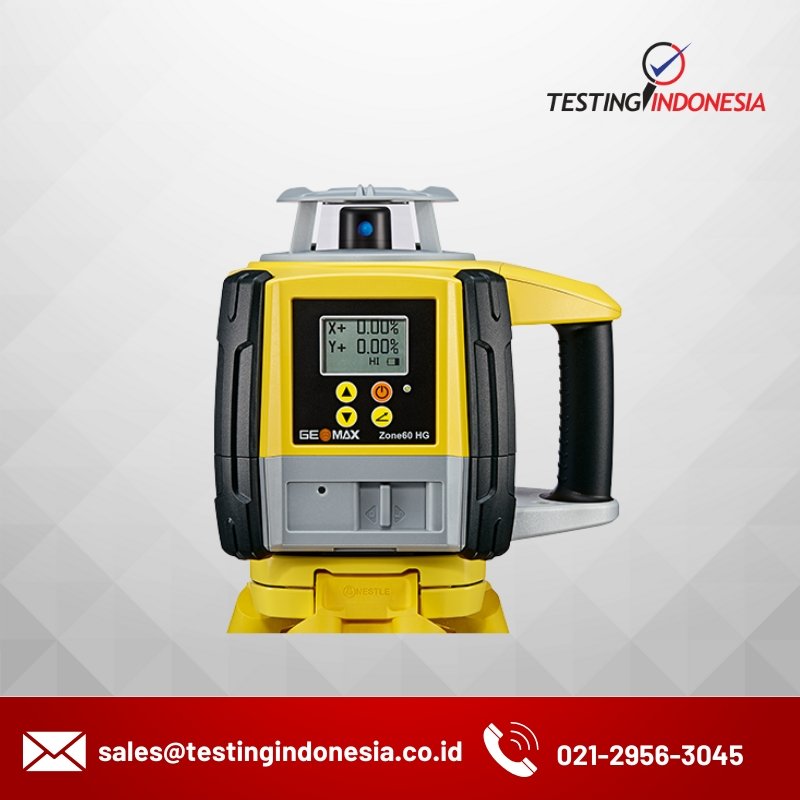

Zone60 HG

Name: Testingindonesia
Rating: 5

Made for high accuracy leveling

Category: Laser Rotators Tag: Zone60 HG

Description

Featuring easy-to-use, dial-in grade capabilities this laser is more flexible in use and enables semiautomatic grade in leveling applications. The Zone60 HG allows a grade up to 8% slope in both axes with high accuracy. This rugged laser is an ideal solution for exterior applications like concrete and form work.

The powerful GeoMax Zone laser rotators portfolio offers the right construction tools for all trades and applications. Regardless if you’re just starting in the industry dealing with the fundamentals or you’re a seasoned professional handling complicated applications, GeoMax laser rotators are ready to work when you do.

Choose the perfect laser for your levelling, aligning or grading application from one of the best laser rotator portfolios in the market.

Solid-built and dependable in any element, these lasers ensure long-lasting operations thanks to multiple charging options and offer interchangeable accessories.

Adding easy-to-use, dial-in grade capability to the dependability of the Zone40 H core, this laser is more flexible in use and enables semi-automatic grade in levelling applications. Zone60 HG allows a grade to 8 per cent in both axes and convinces with high accuracy. Through the display settings, inclinations are clearly made visible and allows an easy and intuitive operation. Zone60 HG is made for exterior applications and is an ideal partner for concrete as well as formworks.

Easy slope setting

For contractors who need to constantly check the height of concrete to ensure optimum levelling is achieved, the Zone60 HG solves their issue by providing accurate and reliable reference working together with GeoMax receivers. For those who need to level the base to achieve a consistent slope from the street to the house, the laser allows automatic operation in the horizontal plane and therefore takes care of the contractor’s main job. The grade can be easily set to the required slope.

Monitor the performance

With the slope function, time and temperature changes are frequently monitored to ensure accurate performance.

Spesification

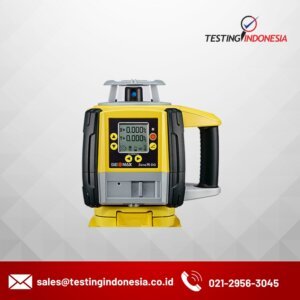

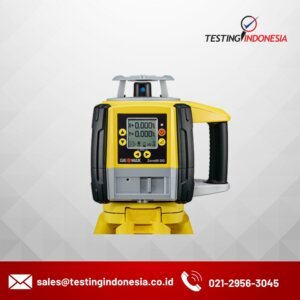

	Zone60 HG	Zone60 DG	Zone75 DG
Description	Self-leveling horizontal digital slope in dual axes (semi-automatic).	Self-leveling horizontal, vertical, digital slope in dual axes (fully automatic). Beam catching option.	Self-leveling horizontal, vertical, digital slope in dual axes (fully automatic). Beam catching option.
Operating Range	900 m / 3000 ft	900 m / 3000 ft	1100 m / 3600 ft
Accuracy	± 1.5 mm at 30 m (±1/16” at 100 ft)	± 1.5 mm at 30 m (±1/16” at 100 ft)	± 1.5 mm at 30 m (±1/16” at 100 ft)
Self-leveling range	± 5°	± 5°	± 5°
Grade range	± 8 %	15 %	15 %
Rotation Speed	600 rpm	300, 600 rpm	300, 600, 900 rpm
Laser diode type/class	635 nm (visible) / class 1	635 nm (visible) / class 1	635 nm (visible) / class 1
Batteries type	4 D-cell alkaline / Li-Ion	4 D-cell alkaline / Li-Ion	Li-Ion
Battery life	> 60h (alk) / > 40h (Li-Ion)	> 60h (alk) / > 40h (Li-Ion)	> 50h
Operating Temps.	-10°C to 50°C 14°F to 122°F	-20°C to 50°C -4°F to 122°F	-20°C to 50°C -4°F to 122°F
Storage Temp.	-30°C to 70°C -22°F to 158°F	-30°C to 70°C -22°F to 158°F	-30°C to 70°C -22°F to 158°F
Protection	IP67	IP67	IP67

Laser Receivers and Remotes

	ZRB90 Basic	ZRP105 Pro	ZRD105 Digital	ZRD105B
Working diameter	600 m (6000 ft)	900 m (3000 ft)	900 m (3000 ft)	900 m (3000 ft)
Extended detection window	80 mm / 3.1 in	105 mm / 4 in	105 mm / 4 in	105 mm / 4 in
Numeric readout height	-	-	90 mm / 3.5 in	90 mm / 3.5 in
Beam catching	-	-	-	✓
Beam lock	-	-	-	✓

ZRB90 Basic

The new and robust receiver, that comes with a specific bracket, has a long detection window and enables detecting at a length of 8cm. The accuracy read out of 1mm/2mm allows an easy finding of the laser beam. The ZRB90 Basic Receiver works up to 300m and runs from the power supply of 2 x AA alkaline batteries. It complies with the high standard of IP66 and therefore allows working even in tough construction environments. The ZRB90 Basic works with all Zone Lasers as well as the ZEL400.

ZRP105 Pro

Top performance. Professional format with a detailed, multi-channel analog, dual display, supported by adjustable LED and audio signals. Build-in flash suppression. This receiver can be used for all Zone Lasers.

ZRD105 Digital

Best digital display technology, packed into a professional and robust housing. Fully featured for a top performance with precise results. Dual display, supported by adjustable LED and audio signals. Build-in flash suppression. This receiver can be used for all Zone Lasers.

ZRD105B

Combines the advantages of the ZRD105B with great new features that are available with the Zone 60DG. Beam Catching – find and align the beam by one key press. Beam Lock allows monitoring the beam. The ZRD105B can be used for the Zone60 DG.

Download Catalogue
