SOLUSI DETEKSI CACAD PADA STRUKTUR BETON DALAM TAMPILAN 3D

ULTRASONIC TOMOGRAPH A1040 MIRA 3D yang merupakan SOLUSI TERBAIK untuk anda dalam mengetahui masalah pada beton dengan metode ultrasonic yang dapat menampilkan tampilan pengujian dalam bentuk 3 Dimensi.

Ultrassonic Tomograph A1040 MIRA 3D dapat digunakan untuk:

  • Mendeteksi lokasi tulangan tulangan dan elemen lainnya (saluran tendon, jangkar, pipa berlubang, kabel, pipa berlubang) serta di luar lapisan tulangan
  • Mendeteksi rongga material, perkiraan posisi dan ukurannya dalam tampilan 3D: rongga, inklusi, honeycomb, serta adanya retakan pada beton.
  • Pengukuran ketebalan dengan akses satu sisi
  • Deteksi cacat grouting pada saluran tendon dan skrup grouting

Spesification

Parameter Value
Instrument type Multi-channel ultrasonic pulse echo tomograph with built-in matrix transducer array
Number of channels 32 (extendable to 64, 96 etc.)
Number of independent elements in the matrix transducer aperture 32 (extendable to 64, 96 etc.)
Type of the ultrasonic transducers Active dry point contact (A-DPC) transducers with ceramic wear proof tips and integrated pulser-receiver electronics
Bandwidth from 10 to 100 kHz
Material sound velocity range from 1.000 to 4.000 m/s (from 40 to 157 inches / s)
Maximum penetration depth in concrete up to 3.000 mm (118 inch)
Maximum penetration depth in reinforced concrete up to 1.000 mm (400 inch)
Power supply Exchangeable Li-Ion battery 18650
Battery operation time up to 10 hours
Maximum dimensions of one unit without handles: 200x125x100 mm (7,9 x 4,9 x 3,9 inch)
Maximum weight of the electronic unit with the batteries, handles and tablet PC mounted 3.5 kg
Operating conditions:
air temperature range from -10 to + 50 С (from 14 to 122F)
relative air humidity at +35С / 95F, max. 95 %
Average service life, min. 5 years

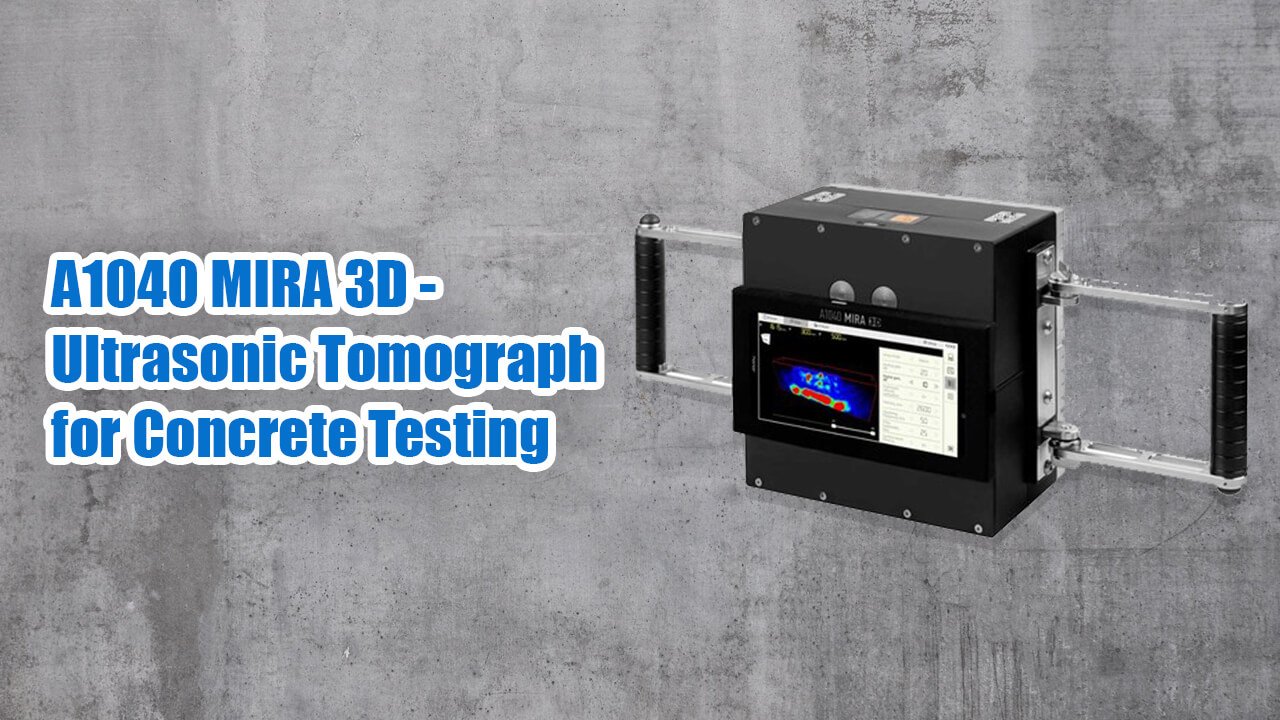

VIDEO APLIKASI

Klik video dibawah ini untuk lebih kenal A140 MIRA 3D

SOLUSI CONCRETE TESTING LAINYA

Ayo liat solusi produk pengujian benton lainya
A1040 MIRA 3D PRO

A1040 MIRA 3D PRO

The High-End Ultrasonic Tomograph For Quality Assessment Of Concrete Structures
Lihat Selengkapnya

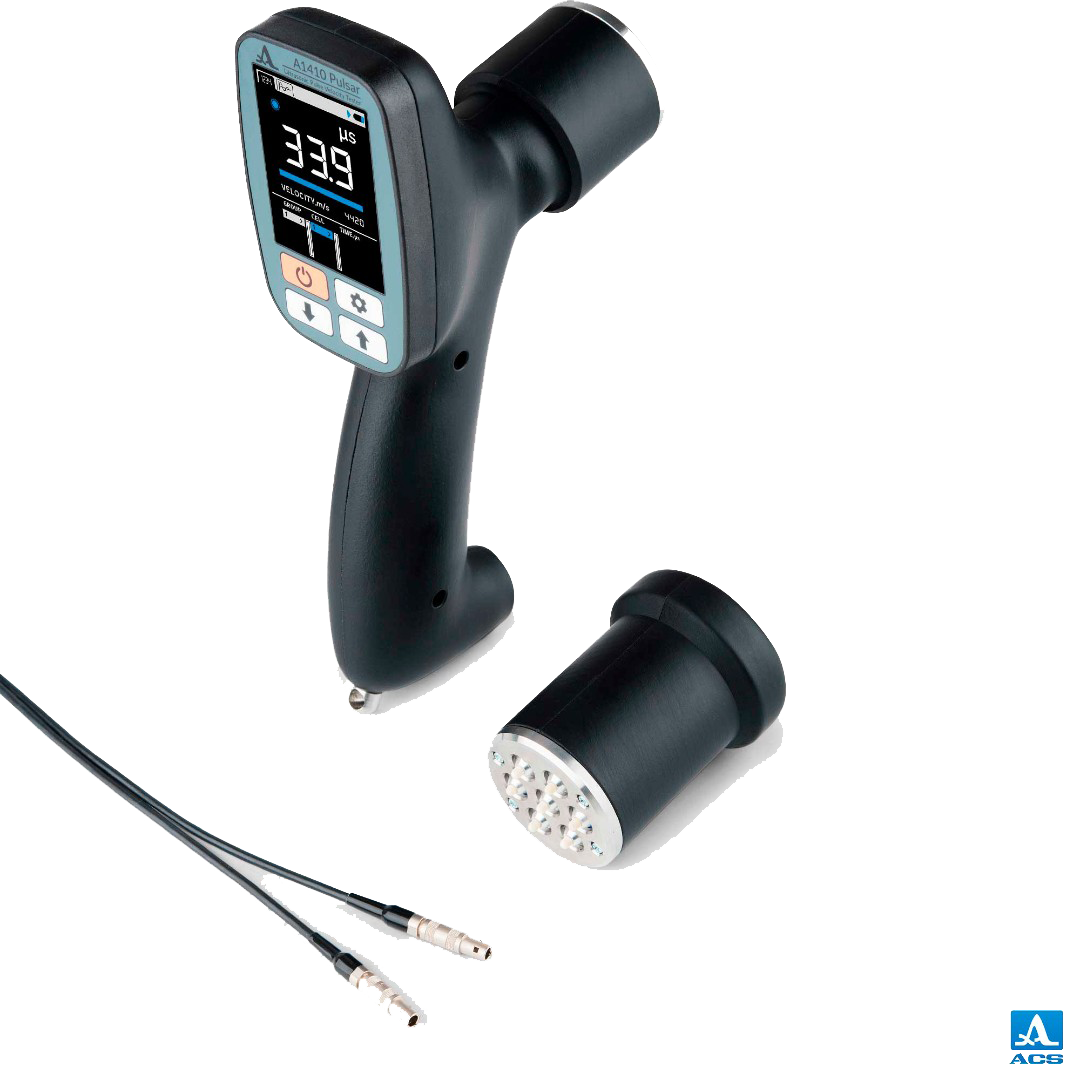

A1410 PULSAR

A1410 PULSAR

A compact, ergonomic and easy to handheld ultrasonic pulse velocity tester for quality assessment of concrete compliant with valid international standards.
Lihat Selengkapnya
alat deteksi tulangan beton, jual alat deteksi tulangan beton, ultrasonic tomograph a1040 mira 3d

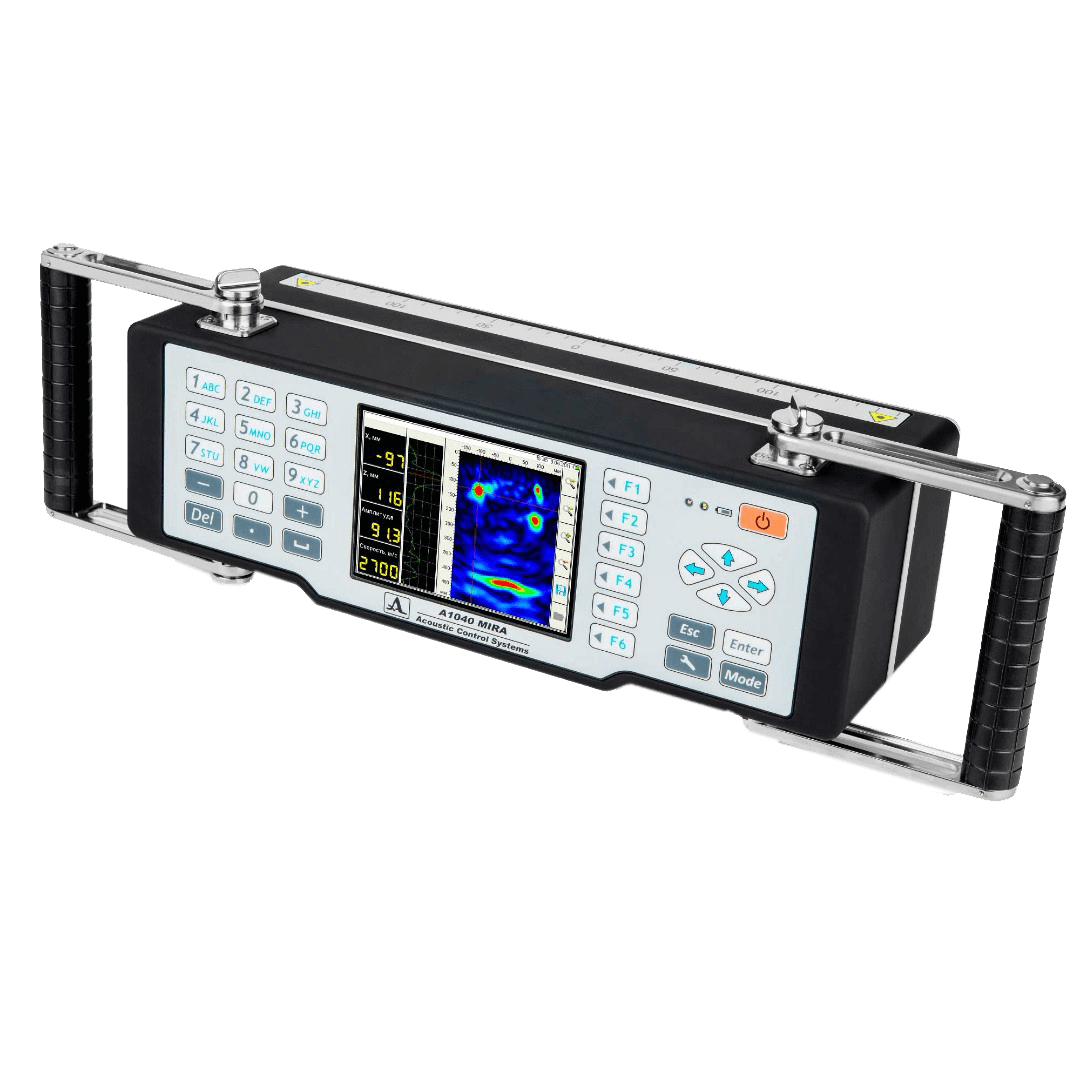

A1040 MIRA
