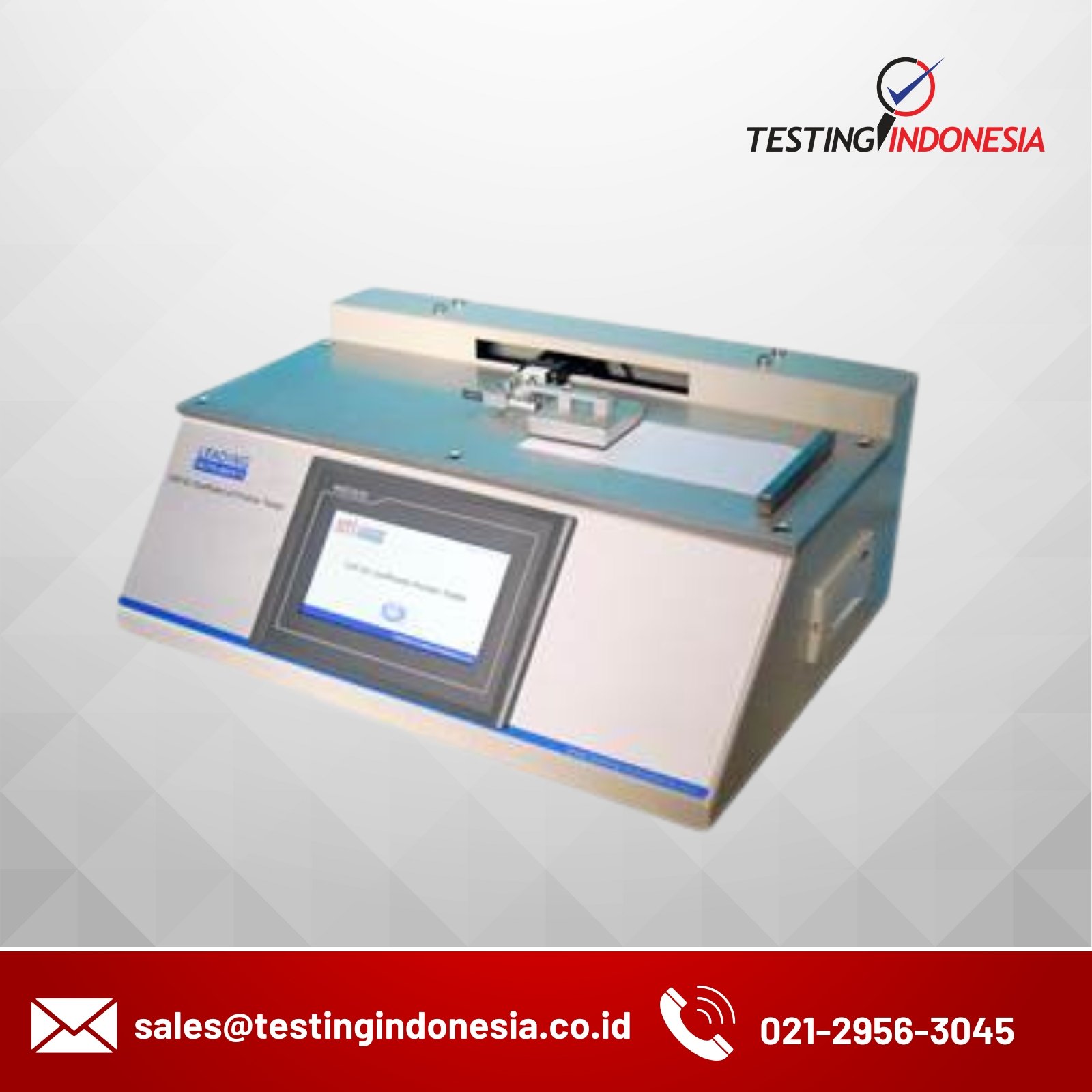

COF-01 Coefficient of Friction Tester

Category: Tags: ,

Description

COF-01 Coefficient of Friction Tester is applicable in static and kinetic coefficient of friction tests of plastic films, sheets, rubber, paper, PP woven bags, fabric style, metal-plastic composite strips/belts for communication cable, conveyor belts, wood, coatings, brake pads, windshield wipers, shoe materials and tyres, etc. With the material smoothness testing, users can control and adjust material quality technical indexes to meet application demands. Besides, this tester is applicable for the smoothness measurement of cosmetics, eye drop and other daily chemistry.

Please Note:
Pictures used are for illustration purposes only and may differ from the actual product received.
We are always dedicated to the innovation and improvement of product performance and function.
Therefore, technical specifications are subject to change without further notice.
Shinetime International and Leading Instruments reserves the rights of final interpretation and revision.

Characteristics

  • PLC control and touch screen operation.
  • Real time display of test data, results and curves.
  • Both the static and kinetic coefficient of friction can be measured.
  • In accordance with multiple international standards.
  • Test results calculation, analysis and curve superposition.
  • RS232 output and professional software.
  • Microprint of easy printing of test result.

Technical indexe

  • Model: COF-01
  • Load Cell Range: 0-5N
  • Accuracy: 1% of reading force
  • Stroke: 130 mm
  • Test Speed: 150 mm/min
  • Mass of Sled: 200g (Other weights customization available)
  • Ambinet Condition: Temperature 10ºC~40ºC; Humidity 20%RH~70%RH
  • Power: AC 220V 50Hz
  • Dimensions: 540mm (L) x 380mm (W) x 240mm (H)

Standard

ASTM D1894
