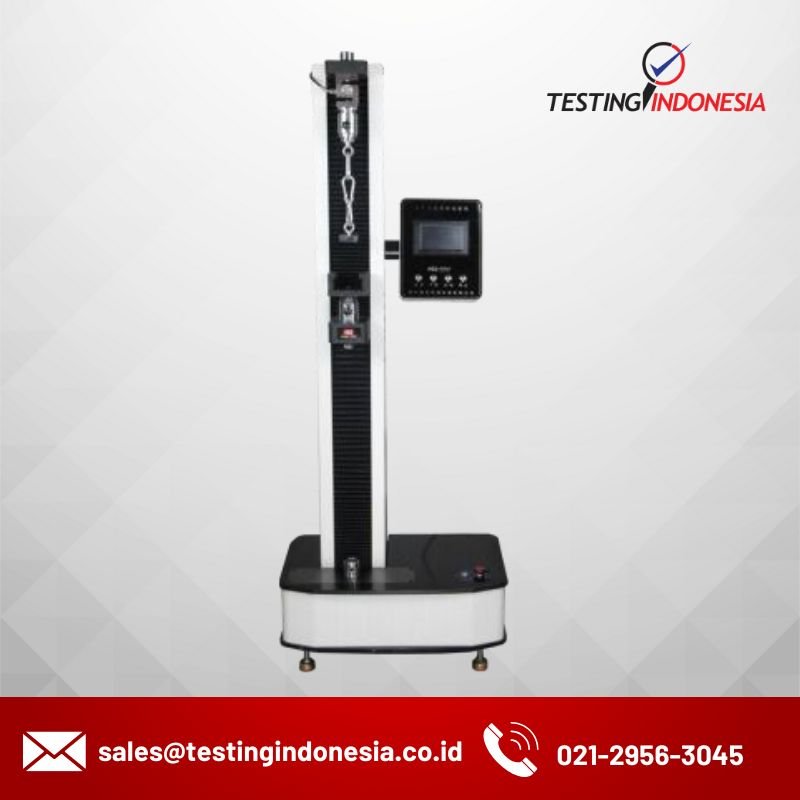

WDW-S05 Type Electronic Universal Material Testing Machine（Special model for cement mortar）

Name: Testingindonesia
Rating: 5

Category: Electronic Universal Testing Machine Tags: Alat Uji Kekuatan Material, Electronic Universal Testing Machine, jual Alat Uji Kekuatan Material, jual Electronic Universal Testing Machine, jual mesin uji tarik, jual Mesin Uji Universal, jual Mesin Uji Universal Elektronik, jual Suku Cadang Mesin Uji Universal, Jual Tensile Strength Tester, Jual Universal Testing, Jual Universal Testing Machine, jual Universal Testing Machine (UTM), jual utm, Layanan Kalibrasi Mesin Uji Universal, Machine, Material Testing Equipment, mesin uji tarik, mesin uji universal, Mesin Uji Universal Elektronik, Pengujian Kekuatan Material, Pengujian Material, Suku Cadang Mesin Uji Universal, tensile strength tester, Tensile Testing Machine, Uji Lengkung, Uji Tarik, Uji Tekan, universal testing machine, Universal Testing Machine (UTM), utm, WDW-S05 Type Electronic Universal Material Testing Machine （Special model for cement mortar）

Description

This product is suitable for testing and analyzing the mechanical properties of various metals, non-metals and composite materials, and can obtain test data such as maximum test force value, fracture force value, yield strength, upper and lower yield strength, tensile strength, compressive strength, elongation at break, tensile modulus of elasticity and bending modulus of elasticity of test materials.

Features

Single-arm design, cementitious sand special models.
Safety position and experimental position height arbitrary lock.
Automatic protection when exceeding the maximum load, software limit and electronic limit double protection.
One button automatic operation, full touch screen control, can realize positioning and automatic return.

Spesification

Maximum load: 5000N
Accuracy level: 1% (level 1)
Effective stretching space: effective stroke 800mm
Effective test width: 100mm
Speed range: 5-500mm/min
Power supply: 220V 50HZ
Total machine weight: about 90kg
Machine dimensions (length*width*height): about 500*450*1350mm
Test force resolution, maximum load 500,000 yards; there is no binning inside and outside, and the resolution remains unchanged throughout the process
Displacement measurement accuracy: within ±1% of the indication value
Deformation measurement accuracy: within ±1% of the indication value
Test bench control: full touch screen control, capable of positioning and automatic return
Overload protection: automatic protection when the maximum load is exceeded
Test force measurement range: 1%-100%FS
Deformation measurement range: 1% ~ 100% FS
