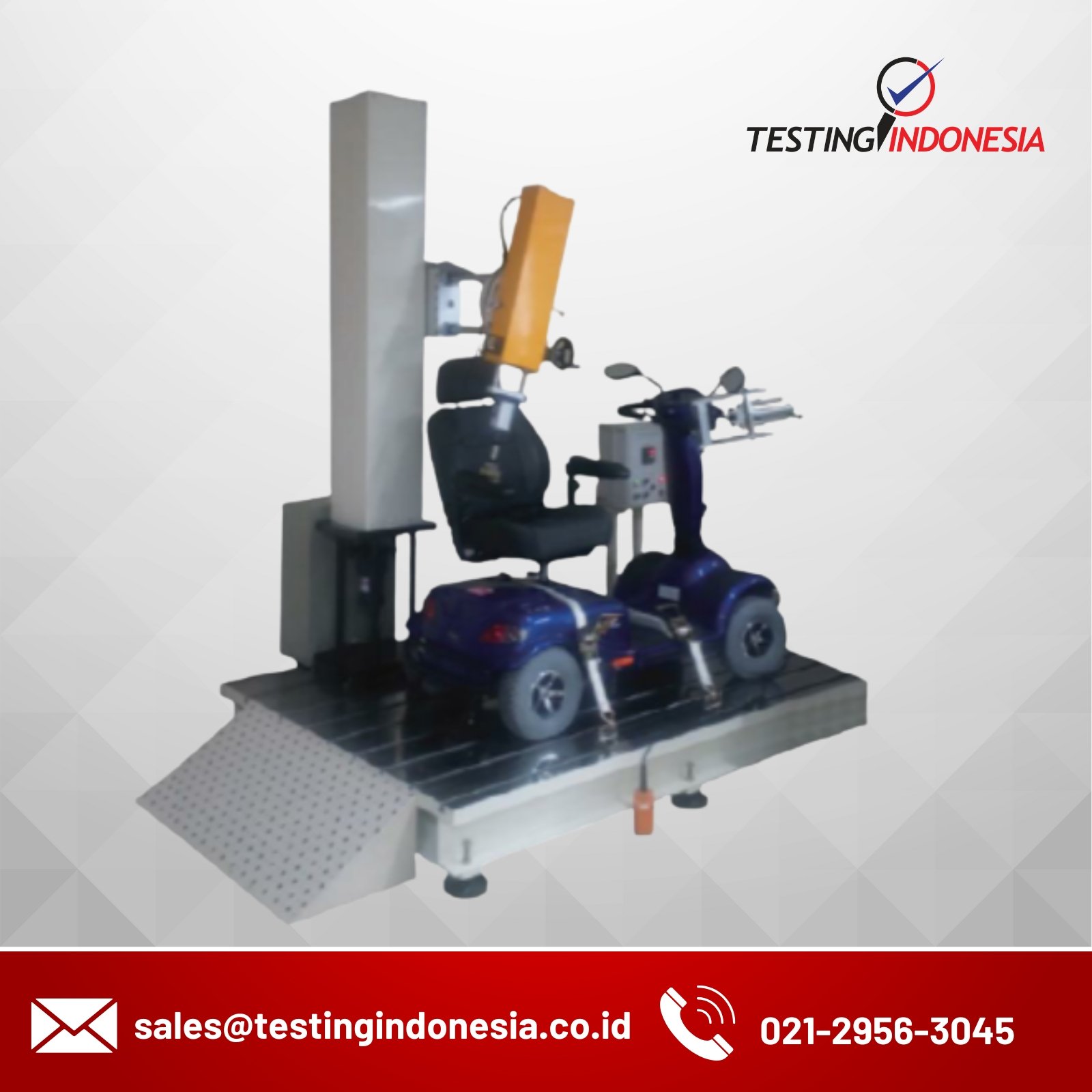

Wheelchairs Durability Testing Machine – TO-D102

Features

  • This tester is a device to test the durability of the driving electric wheelchairs and medical scooters
  • This testing machine is measuring the static and fatigue strenght test

Spesification

Resistance test of

Armrest declining Load

Load : 25 N ~ 760 N /

Load pad : 50 x 50 x R100 ± 3

Diameter 50 x R100 ± 3
Ladder type support : 15º angle

Support distance : 700mm

Resistance test of

Foot plate declining Load

Load : 250 N ~ 1000 N (within) / Weight pad
Weight pad / load support
Bend back lever testTest doll : 100kg, 75kg, 50kg / Foot piece : 3.5 ± 0.5kg
Load : 345 ~ 750 N
Resistance test of Armrest rising Loadwidth 50mm : 10º vertical angle test
Hang weight 335 N ~ 895 N (within) / Scale fixture
Resistance test of

Foot plate rising Load

width 50mm
Hang weight 165 N ~ 880 N (within)
Scale fixture
Resistance test of

Push handle rising load

width 50mm
Hang weight 330 N ~ 880 N (within)
Scale fixture
Durability testChangeable position, Air pressure,

60,000 cycle (under 0.5Hz)
